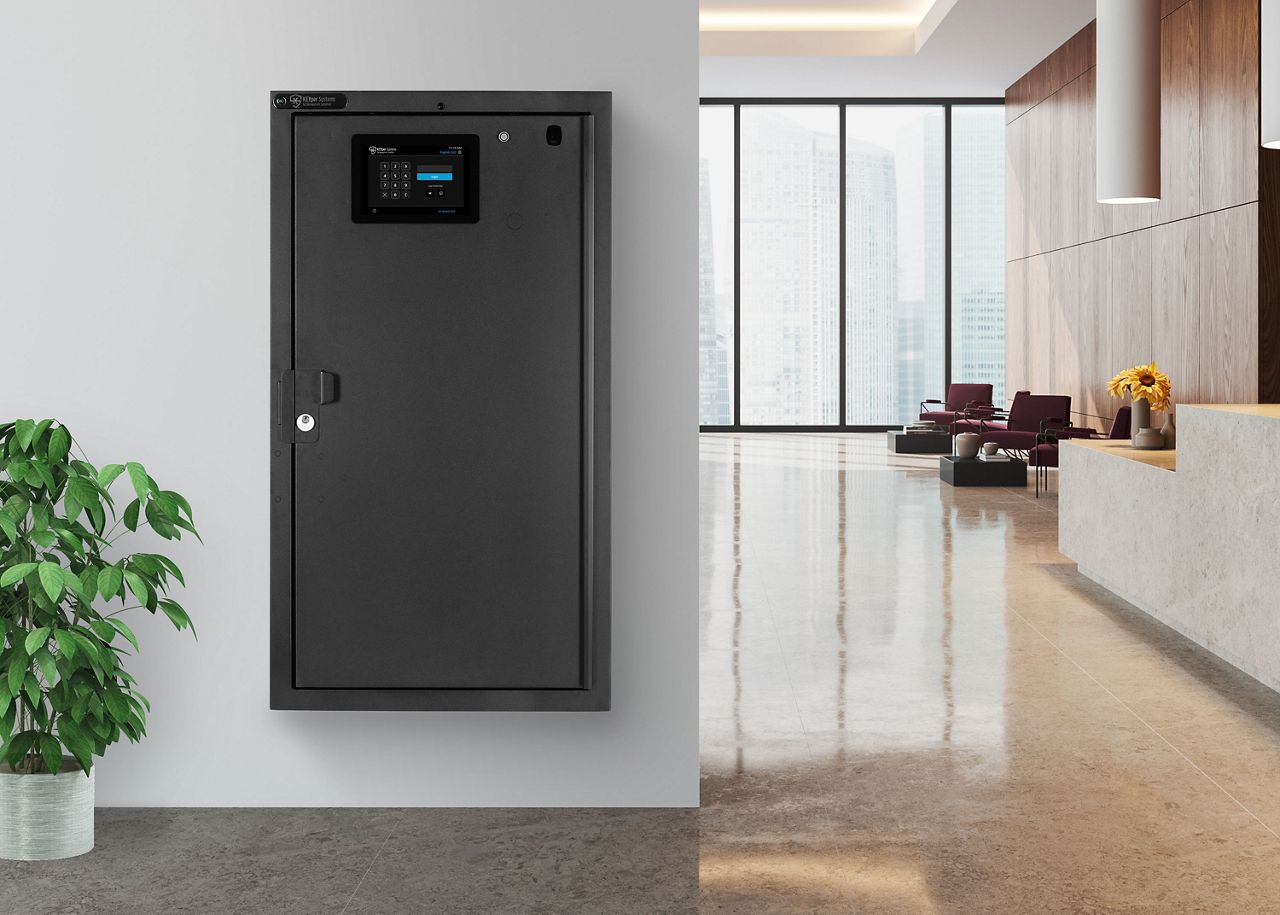

KEYper MX key cabinets

The MX Electronic Key System provides a revolutionary method of key and asset management designed to fit the needs of all industries while providing the ultimate solution in accountability, analytics, security, and asset control.

The system provides a complete audit trail of your keys and assets. You will always know who has your keys, when they took them, and why.

Dimensions –
- Cabinet: 49”H x 27”W x 12.5”D
- Wall Mounted: 51"H x 29"W x 13"D

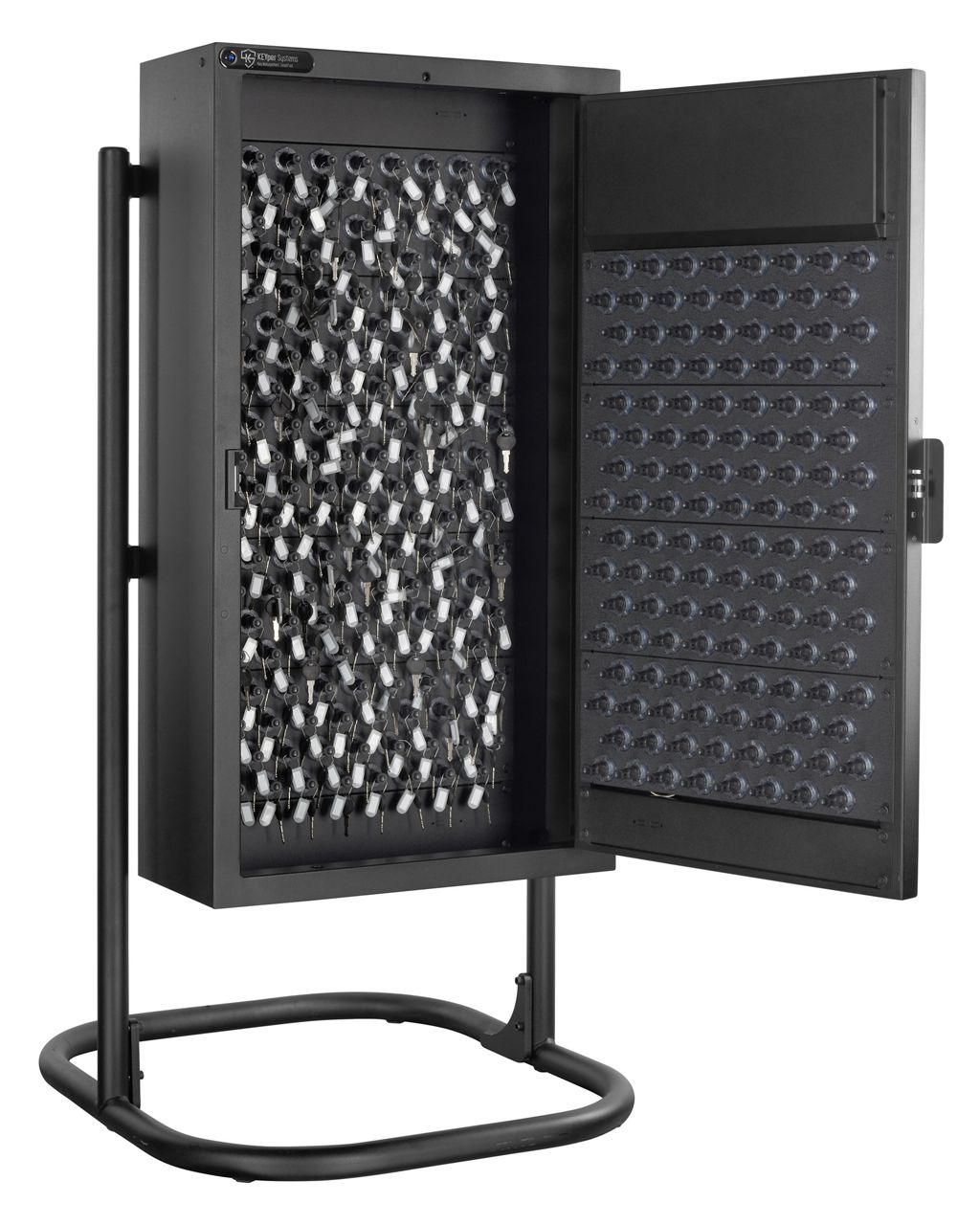

- Stand Mounted: 65.5"H x 32"W x 36"D
Weight – 154 lbs
Power Supply – Input AC100-240V, Output DC12V
Power Consumption – 30W max
Cabinet Material – Powder Coated 16 Gauge Steel
Door Material – Powder Coated 16 Gauge Steel
Operating Temp – Ambient. For indoor use only
Mounting – Wall or Cabinet Stand Mount
Key Positions – 32 to 320
Panel Style – Non-locking
Communications – Ethernet
Certifications - CE, FCC, UL RoHS

KEYPER ADMIN REQUIREMENTS

Supported platforms -Windows Server 2008, 2012, & 2016, Windows 7,8,10
Database – SQL Express 2008,2012,2014 & 2016

1 of 4

Controlled key access
Provide automated access for authorized users, and retain a 24/7 audit trail for total accountability.
Flexible access options
Users are uniquely authenticated via PIN, proximity card or biometric fingerprint for enhanced security.
Web-based administration
Gain total control of users, keys, access permissions, access schedules and more from any computer.
Email/SMS Notifications
Be instantly alerted to important activity, such as a key not being returned on time or failed login attempts.
